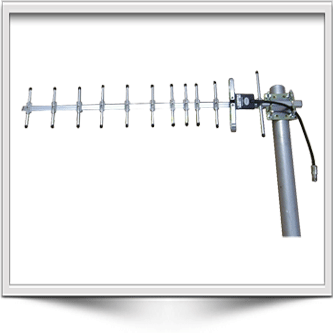

Antenne per Ripetitori - Esterne Yagi - TDJ-900ACY12
 |
Features They have heavy duty structure and easy for installation.
|
Application
|
| Specification | |
|---|---|
| Model | TDJ-900ACY12 |
| Frequency Range–MHz | 806-960 |
| Bandwidth-MHz | 154 |
| Gain-dBi | 12 |
| Horizontal Beamwidth -° | 36 |
| Vertical Beamwidth -° | 32 |
| F/B ratio-dB | ≥18 |
| VSWR | ≤1.5 |
| Input Impedance -Ω | 50 |
| Polarization | Vertical or Horizontal |
| Maximum Power -W | 100 |
| Connector | N Female or Customized |
| Specification | |
|---|---|
| Length-m | 0.88 |
| Weight-kg | 1.1 |
| Mounting Mast Diameter-mm | Ф40 to 50 |
